LAUNCH X431 PAD V OBD2 CAR Diagnostic tool J2534 Online programming coding for DOIP CANFD Bi-Directional key program

What situation needs to perform programming ?

1. Programming new ECUs: Replace new ECU(Determine if programming or coding is required based on fault code prompts). It can read and back up the original ECU data of the vehicle. (Note: The newly purchased spare part numbers need to be equal to the original ones.)

2. Reprogramming second-hand ECUs: Clear second-hand ECU data for reprogramming(if the second-hand has the anti-theft data, it needs to be used with LAUNCH X-PROG3 to clear anti-theft data first, and then match it with the original anti-theft data before reprogramming.).

3.Update the ECU: Some of the ECU has BUGs so it will cause some faults that are difficult to repair. ( For BMW 2889 DME intake valve, carbon deposition, and some of F serious machine oil lamps can’t be zero.)

4. Fixing lost data of ECU: When the software in the ECU corrupts the program due to battery or grounding issues(the Hardware is normal), re-programming can rectify it back to normal operation.

5. Reprogramming on failed programming ECU: If the programming fails but the hardware didn’t damage, the LAUNCH X431 PAD V can reprogram the module in Manual Mode which is compatible with VW/Audi/Ben/BMW. And it supports Programming Backup/Restoration that is applied to match anti-theft data for Mercedes-Benz engine modules and transmission modules, which requires purchasing X-431 PROG3 additionally (If the programming fails, ECU will not communicate and you will not be able to access the system ).

Please Note: Programming is no IP Limited except Spain and Portugal.

Why say LAUNCH X431 PAD V is the first recommendation Diagnostic Tool ?

1. LAUNCH X431 PAD V is the only one supports J2534 Onling + Offline/J2534 Programming Tool , also supports ecu Online + Offline Coding Function !!!

2. LAUNCH X-431 PAD V is newly designed for All Makes, All Models, and Full system diagnosis and assists the technician to make the vehicle diagnosis and repair easier at all skill levels.

3. X431 PAD V scan tool Upgrade all functions of X431 V, PRO3S+, PAD3. With the SmartLink C can download the OEM software from the manufacturer’s server for free.

4. X-431 PAD V support all new J2534/DOIP/CANFD protocols to access data and OE programming downloads for most Car, also Support DC9-36V for HD Vehicle ( No NEED buy HD Module, SAVING $900+.)

5. X431 PAD V supports All reset functions : more than 50 resets reaching into the smallest parts to root out the problems. Extra 300+ repair functions ( in-vehicle catalog) for specific models extend the capability to regeneration, initiation, matching, etc.

6. Workshop level scan tool X431 PAD V with the repair fix solutions database, Code Assist, Repair Tips,Component Measurement, TSB, Relevant Cases,DTC Analysis to simplify complex diagnostic and achieve the trouble-free repair.

7. LAUNCH X431 PAD V is in promotion now , buy one can get the update pin card with 1 year free update as gift ( value USD500 ), that mean it is with 2 years free update , pls hurr up to catch, limited offer !

LAUNCH X431 PAD V supports Online Programming + Offline/J2534 programming , it is more powerful and Cost-effective than other J2534 tool ：

* X-431PAD V online programming does not require an expensive online account, just connect to WIFI, saving maintenance costs.

* smartLink C adopts dual WIFI communication to improve programming speed, thereby reducing the possibility of programming errors

* When using J2534 tool, in addition to the connector, it is also necessary to consider issues such as adapting the computer, installation costs, and complete functions, which is not cost-effective.

LAUNCH X-431 PAD V works with SmartLink C for Programming function , it is with more faster speed to data transmission during Programming , Reduce programming time , improves the success rate of programming , and also protect your car during programming .

The optimization to the LAUNCH X431 scan tool’s software communication with the vehicles of today and of the future, dramatically improves scanning, coding, and reprogramming performance.

1. LAUNCH X431 SmartLink C realize download data, transfer data and write data Online synchronously during programming, because it is with the stable and solid 5G Wi-Fi network ( not like others , need download data from your computer first , then connect the computer to write the data , it is more slow )

2.LAUNCH X431 Smartlink C is compatible with all new J2534/DOIP/CANFD/D-PDU/RP1210 protocols giving you power to access data and OE programming downloads for Toyota, for Honda, for Volvo, for VW, for GM, for Chrysler, for Benz, for Jaguar, for Land Rover, for GM, and for BMW E/F/G Chassis. It also serves as a wireless VCI allowing the vehicle to transmit data to the diagnostic tablet without a physical connection.

3.Serve as the VCI Box for Wireless Diagnostics – Transmit vehicle data to the diagnostic tablet without a physical connection.

4.Compatible with new communication protocols of CANFD (compatible with some for GM car models), and DOIP (compatible with for BMW E/F/G Chassis, Jaguar, Land Rover), and support DC9-36V for HD Vehicles (need the extra purchase of HD software, non-16pin HD adaptors); offering the OE-level aftermarket coverage to have maximum manipulation and calibration previously allowed in a manufacturer’s software controls.

LAUNCH X431 PAD V supports ECU coding Function : Alter the Car on Your Demand

Why does the car not work normally after replacing ECUs/ modules?

When an ECU/module is damaged, you have to replace a new one. After replacing the ECU/module, you have to follow the strict procedures of the manufacturer to match, learn, code, or even program it before it functions normally. Otherwise, the car cannot start or some parts cannot work normally.

What can LAUNCH X431 PRO V Scanner do?

Featuring ECU/Module replacement functions, LAUNCH X431 PRO V Bi-directional Scanner can help you initialize, match, relearn, or code the newly replaced ECU/module to get it back on track.

ECU Coding: Customize Your Car in Minutes

* Same as other LAUNCH X431 High-end OE-level scan tool , LAUNCH X431 PRO V has the capability of ECU coding to change preprogrammed options in the software, helping you customize your car faster as needed.

* Optimally code your car by changing some settings to fit your needs, such as setting alarms, doors locking, etc.

* Access the ECU to make full use of the hidden features or disable the car’s annoying functions, like activating the auto side mirrors folding function, disabling the automatic engine Start-Stop function, etc.

* Provide excellent solutions for issues of drivability, power loss, fuel efficiency, etc. to improve the car’s performance.

* Reprogram the adaptive data for certain components after repairs or replacements.

* ECU Online Coding is available for BMW, VW, Porsche, Renault, etc.

Please Note: ECU Coding changes preprogrammed options which depend on the type and number of electronic features already built in. Thus, ECU coding is not universally compatible and varies for different vehicles.

LAUNCH X431 PAD V Supports Active Test & Bi-directional control: Enhance Your Experience

Bi-Directional Control capability and is capable of performing Active Tests to access vehicle-specific subsystems and component tests. The tester outputs commands to the ECU to drive the actuators in order to determine the integrity of the system or parts by reading the ECU data, or by monitoring the operation of the actuators .

For example , x431 PAD V have the ability to actuate relays, injectors, coils, or perform system tests, etc. Also it will actuate solenoids valve and actuators for active testing to identify the error easily moreover.

The bidirectional functions are quite extensive. even open an e.g.r. valve and seeing the difference in idle response and oxygen sensor voltage.

Please note: Active tests are NOT universal for all vehicles, check compatibility with VIN number before purchase. Active tests vary depending on the manufacturer, year, and model, and only the available tests display in the menu.

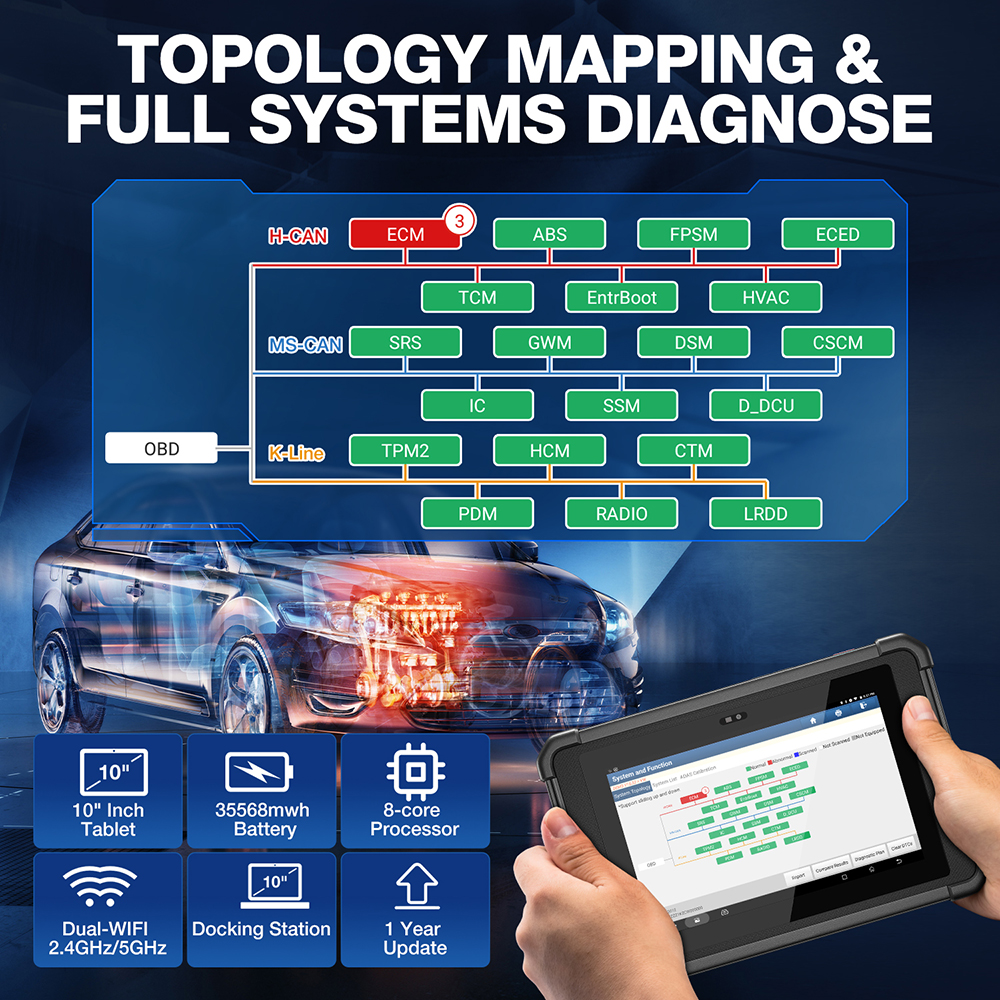

X431 PAD V provides Module Network Structure Topology,Better to let you know the car clearly and simple !

Color-coded topology displays all system status in one page!!!View structure of communication between modules

* With topological diagram Function,it can displays the entire system through the Topology Map to glance all the modules with trouble code, which is easy to locate faults and causes. Up to 5 ways of DTC display: Easy View of All Systems

* Topology, list, separately click into the control unit, Intelligent Diagnostics details, vehicle diagnosis report, among which Topology is the newest and innovative configuration.

* Display the entire system through the Topology Map to glance all the modules with faults, which is easy to locate faults and causes. Color-coded topology displays all system status in one page and structure of communication between modules. Communication between modules and status can be spotted in a glance and you can locate faults more intuitively to solve problems quickly!

NOTE: Topology is not universal to all the vehicles.

LAUNCH X431 PAD V Diagnose All systems of the car

The Full Systems of the car mainly including Drive System, Chassis System, Body System, Electrical system :

1.PCM(Drive System): Engine, Transmission, Transfer case, Electrical Machine Electronics, Fuel Pump, Gear, and more… Thinkcar Thinktool Pros OBDII Car Automotive Diagnostic Tool OBD2 Scanner OBD 2 Code Reader TPMS Functions PK Automotive Scanner
2. Chassis System: Accumulator Management Electronics, Steering, Integrated Chassis Management, Tyre Pressure Control, Active Cruise Control, Braking System, Suspension, TPMS and more…

3.BCM(Body System): SRS Airbag, Camera, Audio Radio, Gateway, Cluster Dashboard, Rain Sensors, Charging Interface Module, Parking Assistance, Power Control Unit, Touch box, Light, Battery Charging System, Head up Display, Wipe Control System, Roof, Seat & Door Motor system, Immobilizer, ABS ESP system, Air Condition.Electric Windows, Telephone, and more…

4.Electrical System: Including Centralized control system for engine and power transmission, Chassis integrated control and safety system, Intelligent body electronic system, Communication and information / entertainment system.

It supports the detailed Function :

–read fault codes: read and decode the DTCs to identify where the fault location is;
–clear fault codes: erase the DTCs to turn off the MIL after repairs;
–retrieve ecu information: allows you to retrieve vehicle information;
–Graph live data stream: view the dynamic data stream to determine vehicle condition
–ECU Coding : Match, learn, or code the new ECU; Customize your car, unfold the hidden features, or disable the annoying functions; Reprograms the adaptive data for certain components after repairs.
–Active Test ( Bi-directionnal Control ) : Actuate solenoids and actuators for active testing, send commands to systems/components to test their working status, without using the vehicle controls.

With the Diagnose Function , you can enhance performance, save energy, reduce emissions and more as following:

For Engine: detect common issues as Poor lubrication, Failing oil pump, Oil deposits and debris, Inadequate fuel and air compression, Leaking engine coolant, Blocked engine radiators, Prolonged engine detonation, Damaged oxygen sensors, Aged spark plugs, etc.

For SRS: pinpoint the trouble area as: a bad seat belt, a corroded crash sensor, or some water intrusion in a connector, etc.

For ABS: diagnose Blown sensor fuse, Low brake fluids, and Faulty sensor, etc.

For Transmission: avoid Grinding or shaking sensation in gear, Whining, humming or clunking noises, Burning smells, Gears Slipping, Low or Leaking Transmission Fluid, etc. XTOOL D9 Automotive Scan Tool Topology Map Bi-Directional Control ECU Coding Full Diagnostics & 31+ Resets Support DoIP & CAN FD
For TPMS: verify problems of Low tire pressure, Faulty in tire pressure monitor control module, Unknown tire sensor, Failure to identify tire sensor, etc.

LAUNCH X431 PAD V Diagnostic Tool Supports All (More than 60) special Reset functions.( Keep growing with UPDATES)

( pls note different reset function supports different cars , also supports some cars , not for all cars , pls contact us check the detailed car list , you also can check in the link directly : https://qcar.x431.com/qcar/#/pc/index?q=eyJsYW4iOiIxMDAyIn0%3D ）

1> Oil Reset Service

This function enables you to reset the oil service for the engine oil life system,which calculates an optimal oil life change interval depending on the vehicle driving conditions and weather events.
lt needs to be performed in the following cases:
1. lf the service lamp is on, run car diagnostics first for troubleshooting.Afterthat, reset the driving mileage or driving time, so as to turn off the servicelamp and enable a new driving cycle.
2. lf the service lamp is not on, but you have changed the engine oil or electric
appliances that monitor oil life, you need to reset the service lamp.

2> Electronic Parking Brake Reset

This function enables you to reset the brake pad after replacing the brake pad.lt needs to be performed in the following cases:
1.The brake pad and brake pad wear sensor are replaced.
2.The brake pad indicator lamp is on.
3.The brake pad sensor circuit is short, which is recovered.4.The servo motor is replaced.

3> Steering Angle Calibration

This function enables you to reset the steering angle,after replacing thesteering angle position sensor,replacing steering mechanical parts (such assteering gearbox,steering column, end tie rod, steering knuckie), performingfour-wheel alignment, or recovering car body.
To reset the steering angle, first find the relative zero point position for thecar to drive in straight line. Taking this position as reference,the ECU cancalculate the accurate angle for left and right steering.

4> ABS Bleeding

This function allows you to perform various bi-directional tests to check theoperating conditions of Anti-lock Braking System(ABS).
lt needs to be performed in the following cases:
1. When the ABS contains air.
2. When the ABS computer, ABS pump, brake master cylinder, brake cylinder,brake line, or brake fluid is replaced.

5> Gear Learning

This function enables you to perform tooth learning for the car, to turn off the MIL.
lt needs to be performed in the following cases:
1. After the engine ECu, crankshaft position sensor, or crankshaft flywheel isreplaced.
2. The DTC ‘tooth not learned’ is present.

6> IMMo Service

This function enables you to perform the anti-theft key matching function, sothat the immobilizer control system on the car identifies and authorizes remotecontrol keys to normally use the car.
lt needs to be performed in the following cases:
When the ignition switch key, ignition switch,combined instrument panel,ECU,BCM, or remote control battery is replaced.

7> Injector Coding

This function enables you to write injector actual code or rewrite code inthe ECU to the injector code of the corresponding cylinder，so as to moreaccurately control or correct cylinder injection quantity.
lt needs to be performed in the following cases:
After the ECu or injector is replaced.

8> Battery Maintenance System Reset

This function enables you to perform a resetting operation on the monitoringunit of vehicle battery, in which the original low battery fault information will becleared and battery matching will be done.
lt needs to be performed in the following cases:1. The main battery is replaced.
2. The battery monitoring sensor is replaced.

9> Diesel Particulate Filter (DPF) Regeneration

This function enables you to clear PM(Particulate Matter) from the DPF filterthrough continuous combustion oxidation mode (such as high temperatureheating combustion,fuel additive or catalyst reduce PM ignition combustion)to stabilize the filter performance.
lt needs to be performed in the following cases:
1. The exhaust back pressure sensor is replaced.
2. The PM trap is removed or replaced.
3. The fuel additive nozzle is removed or replaced.
4. The catalytic oxidizer is removed or replaced.
5. The DPF regeneration MlL is on and maintenance is performed.
6. The DPF regeneration control module is replaced.

10> Electronic Throttle Position Reset

This function enables you to make initial settings to throttle actuators andreturns the learned values stored on ECU to the default state. Doing so canaccurately control the actions of regulating throttle (or idle engine) to adjust theamount of air intake.

11> Gearbox Matching

This function enables you to complete the gearbox self-learming to improvegear shifting quality.
lt needs to be performed in the following cases:When the gearbox is disassembled or repaired.

12> AFS (Adaptive Front-lighting System) Reset

This function enables you to initialize the adaptive headlamp system.

13> Sunroof Initialization

This function enables you to set the sunroof lock off,closed when it rains,sliding / tilting sunroof memory function, temperature threshold outside the caretc.

14> Suspension Calibration

This function enables you to adjust the height of the body.
lt needs to be performed in the following cases:
1. When replacing the body height sensor， or control module in the airsuspension system.
2. When the vehicle height is incorrect.

15> EGR Adaption

This function is used to learn the EGR(Exhaust Gas Recirculation) valve afterit is cleaned or replaced.

16> Seats Calibration

This function is applied to match the seats with memory function that arereplaced and repaired.

17> Tyre Reset

This function is used to set the size parameters of the modified or replacedtire.

18> Coolant Bleed

Use this function to activate the electronic water pump before venting thecooling system.

19> AdBlue Reset (Diesel Engine Exhaust Gas Filter)

After the diesel exhaust treatment fluid (car urea) is replaced or filled up, ureareset operation is required.

20> NOx Sensor Reset

NOx sensor is a sensor used to detect the content of nitrogen oxides (NOx) inengine exhaust. lf the NOx fault is re-initialized and the NOx catalytic converteris replaced, it is necessary to reset the catalytic converter learned value storedin the engine ECu.

21> Ac System Initialization

AC system releam/initialization must be performed when the vehicle AC ECUor actuator is replaced or the ECu memory is lost.

22> High Voltage Battery Detection

This function is used for high voltage battery diagnosis and status informationdetection.

23> Windows Calibration

This function is used to perform door window matching to recover the ECuinitial memory, and recover the automatic ascending and descending functionof power window.

24> Language Change

This function is used to change system language of vehicle center console.

25> AF Reset

This function is applied to set or learn airlfuel rate parameters.

26> Transport Mode

To lower vehicle power consumption, user may perform the following operations: limit vehicle speed, not wake up the network for door open anddisable remote key etc. In this case, deactivating transport mode is needed torecover vehicle being normal.

27> StoplStart Reset

This function is used to open or close the automatic StartStop function viasetting the hidden function in ECU (The precondition is vehicle equipped withhidden function and hardware support).

28> Intelligent Cruise Control System Reset

This function is used to matching the intelligent cruise control module after it isreplaced or repaired.

29> Engine Power Balance Monitoring

This function is used to monitor crankshaft acceleration in the power stroke ofeach cylinder, to determine the relative power provided by each cylinder.

30> Gas Particulate Filter (GPF) Regeneration

This function is used to perform the GPF replacement or regeneration after the fuel consumption is increased and engine output power is reduced resultingfrom a long time service of the GPF.

31> Motor Angle Calibration

This function is used to perform the motor angle calibration when the rotorposition detected by the motor angle position sensor is different from theactual rotor field position.

32> ECU Reset

33> FRM Reset

34> Clutch Reset

35> Gate Reset

36> Turbo Reset

37> RLsensor Reset

38> Program Reset

39> TPMS Reset

…….

Key Programming (Need to work with x431 x-prog3 to do key programming)

With the IMMO Keys function, LAUNCH X431 PAD V can add new keys, disable/clear information of the lost vehicle keys, and pro~gram the replacement key fob for most Asian and American vehicles, which come with low-grade anti-theft systems.

The Other Function of LAUNCH X431 PAD V Support :

12-in-1 graphic data flow / print data / print diagnosis report / record historical data:

powerful data analysis function, not only engine system, but also ABS, SRS and gearbox. >>>Automatic generation of main system diagnosis report, for the car problem at a glance. >>>Replay the frozen frame and record the history of the car. >>>Print out the data you want

OBD2 Procotol 16pin connector pin detection Function ( Only X431 PAD V has the function ):

Analysis and description:Pin detection can be used to detect the voltage ofthe vehicle OBD-ll diagnostic socket pins and the supported protocol types tohelp technicians judge the 0BD-ll diagnostic interface. If the detection resultdoes not match the actual vehicle configuration, the corresponding pin maybe faulty.

Intelligent Diagnose

Automatically identify VIN upon connection to the vehicle for intelligent diagnosis , also supports Local Diagnostic , it supports VIN Scan , more intelligent , no need you write the VIN manually .

Remote Diagnosis: Device-To-Device & Device-To-PC).

This option aims to help repair shops or technicians launch instant messagingand remote diagnosis, making the repair job getting fixed faster.

Diagnostic history and diagnostic feedback – Take Your Guesswork Out

Any wonder about what specific diagnostic issues you may challenge? This scan tool thoughtfully offers direct access to the “Feedback” function module, which provides customized repair suggestions from LAUNCH’s certified professionals. This is invaluable to workshops attempting to fix issues of new car models that have only been on the market for a short time.

LAUNCH X431 PAD V Supports Car List :

Supports 10000+ car models from America, Europe, Asia (Including Russian car models, Chinese car models, Indian car models, Malaysian car models, Australian car models, Brazilian car models, Latin American car models and other national models，including cars, SUVs, minvans, 12v light-duty trucks, gasoline cars and diesel cars.

American cars:

For BUICK , For CADILLAC , For CHEVROLET , For CHRYSLER , For DODGE , For FIAT(BRAZIL) , For FORD , For FORD(AUSTRALIA ) , For GM , For JEEP , For LINCOLI , For GM(BRAZIL)

European cars :

For ABARTH , For ALFA ROMEO , For AUDI , For BENTLEY , For BMW , For BUGATTI , For CITROEN , For DACIA , For EUROFORD , For FERRARI , For FIAT , For GAZ , For OPEL(SOUTHAFRICA) , For IVECO , For JAGUAR , For LAMBORGHINI , For LANCIA , For LANDROVE , For MASERATI , For MAYBACH , For MERCEDES , For MINI , For OPEL , For PEUGEOT , For PORSCHE , For RENAULT , For ROLLSROYCE , For ROVER , For SAAB , For SEAT
, For SKODA , For SMART , For SPRINTER , For VAUXHALL , For VAZ , For VOLVO , For VW , For ASTONMARTIN , For UAZ

Asia Cars :

For ACURA , For DAEWOO , For DAIHATSU , For HOLDEN ( AUSTRALIA ) , For HONDA , For HYUNDAI , For INFINITI , For ISUZU , For KIA , For LEXUS , For LUXGEN , For MAHINDRA , For MAHINDRA( INDIAN ) , For MARUTI , For MARUTI( INDIAN ) , For MAZDA , For MITSUBISHI , For NISSAN , For GTR( NISSAN ) , For PERODUA , For PERODUA( MALAYSIA ) , For PROTON , For PROTON( MALAYSIA ) , For SAMSUNG , For SAIPA , For SSANGYONG , For SUBARU , For SUZUKI , For TATA , For TATA( INDIAN ), For TOYOTA

Chinese Cars :

For BRILLIANCE , For BYD , For CHANGAN , For CHANGHE , For CHBUICK , For CHERY , For CHANGHE , For SUZUKI , For DFCIROEN , For ECUAID , For FAW( TIANJIN ) , For FOTON , For GONOW , For GWM , For HAFEI , For HAIMA , For JAC , For JAC REFINE , For JMC , For JOYLONG , For LIFAN , For MG( SAIC ) , For QOROS , For MAXUS , For SGM , For SGMW , For XINKAI , For POLARSUN , For ZX AUTO , For ZOTYE , For SENOUA ( BAIC ) , For BJEV , For BAIC , For JINLONG , For SPARK , For DFSK , For SOUEAST

LAUNCH X431 PAD V diagnostic scanner has supported various extended modules (needs to buy additionally) :

X431 PAD V 24V Truck package : It is with 1 year truck software free update + all truck connectors & cables !

LAUNCH VSP-600 VIDEOSCOPE : Check unseen parts of engine, fuel tank system, etc.

X431 TSGUN : Activate all sensors,TPMS relearn, Program LAUNCH sensors

X431 X-prog 3 : Professional auto key programmer tool , it supports almost kinds of cars in the work , also supports all key lost !

X431 BST-360 Battery tester : it supports Battery Health Test , Smart System Test , Charging Health Test and Test Record

X431 wifi mini PRINTER : Print out diagnostic data/reports

ADAS EQUIPMENT : Calibrate a wide range of camera-based & radar-based driverassistance systems

UPGRATE For BENZ: Optimized ADAS function & Query VIN for police equipment;pdated DPF function of diesel engine

UPGRATE For SPRINTER: Added the data stream, actuation test and special functions for some systems, like the headlight range regulation module, etc.

UPGRATE ForLANDROVER: Added Camera Calibration(Land Rover models from 2010 to2014)& ADAS function (Jaguar & Land Rover from 2017 to 2020)

SmartLink C VCI Parameter :

Screen : 3.5” touchscreen

Working Voltage: DC 9v ~36V

RAM: 256MB

ROM: 8GB

USB: Type Bx 1

Wi-Fi: 2.4G/5GHz Dual Frequency

Power: ≤6.6W

Working Temp.: o℃ ~ 50℃

LAUNCH X431 PAD V Packing List :

X-431 PAD V 10″ Tablet PC

SMARTLINK C Diagnostic connector

X-431 PAD V Charging Slot

For AUDI-4PIN Cable

For BENZ-14PIN Cable

For BENZ-38PIN Connector

For BMW-20PIN Connector

For CHRYSLER-6PIN Connector

For DAIHATSU-4PIN Connector

For DAEWOO-12PIN Connector

For FIAT-3PIN Cable

For FORD-6+1 Connector

For GAZ Cable

For GEELY-22PIN Connector

For GM/VAZ-12PIN Connector

For HONDA-3PIN Connector

For SSANGYONG-14PIN Cable

For SSANGYONG-20PIN Connector

For SUBARU-9PIN Connector

For SUZUKI-3PIN Cable

For TOYOTA-17PIN Connector

For TOYOTA-22PIN Connector

For UNIVERSAL-3PIN Cable

OBD I Adapter

X431 OBD2 16PIN Extension Cable

X431 PAD4HD USB A-B Cable

US Power Adapter

Cigarette Cable

Clip Cable

X-431 PAD V Touch Pen
